UL Listed 6Pcs 24V Electromagnetic Relay Din Rail Relay 5Amp Coil 14 Pin 4PDT Socket with LED Light Module with Test Button with DIN Rail Signal

Package include : Package Content : 6 Sets Relay and Socket;2 Rail Slotted Aluminum; 2 Fixing clamp; 2 Screw. Relay Features 1.Easy installation，Maximum switching capacity: 2500VA 300W(Resistive load) Printing on the coil tape indicates the operating coil specification.Relays with AC coils have Red indicators LED and Red test button (test function). 2.Get an electric shock load big: 10A3.High sensitivity,Contact material：Ag alloy4.Point dynamic test and self-locking function5.LED indicator light windowContact DataRated Load:4NO 4NC 4PDT,5A 250VAC /5A 30VDC Contact structure: Single Mechanical endurance: 50,000,000 operations (switching frequency: 18,000 operations/h);Electrical endurance:500,000 operations (switching frequency:2,400operations/h)Rated carry current: 5 AMax. contact voltage:AC250V,DC30VMax. contact current:10A Minimum load(reference values): DC5V 1mACharacteristicsOperating time ≤20msRelease time ≤10msInsulation resistance ≥1000mΩ （500VDC) Contact resistance: 50mΩAmbient operating temperature:-40℃～+70℃Weight: 123g/ 0.27 Pound Ambientl humidity:5%～85%RH

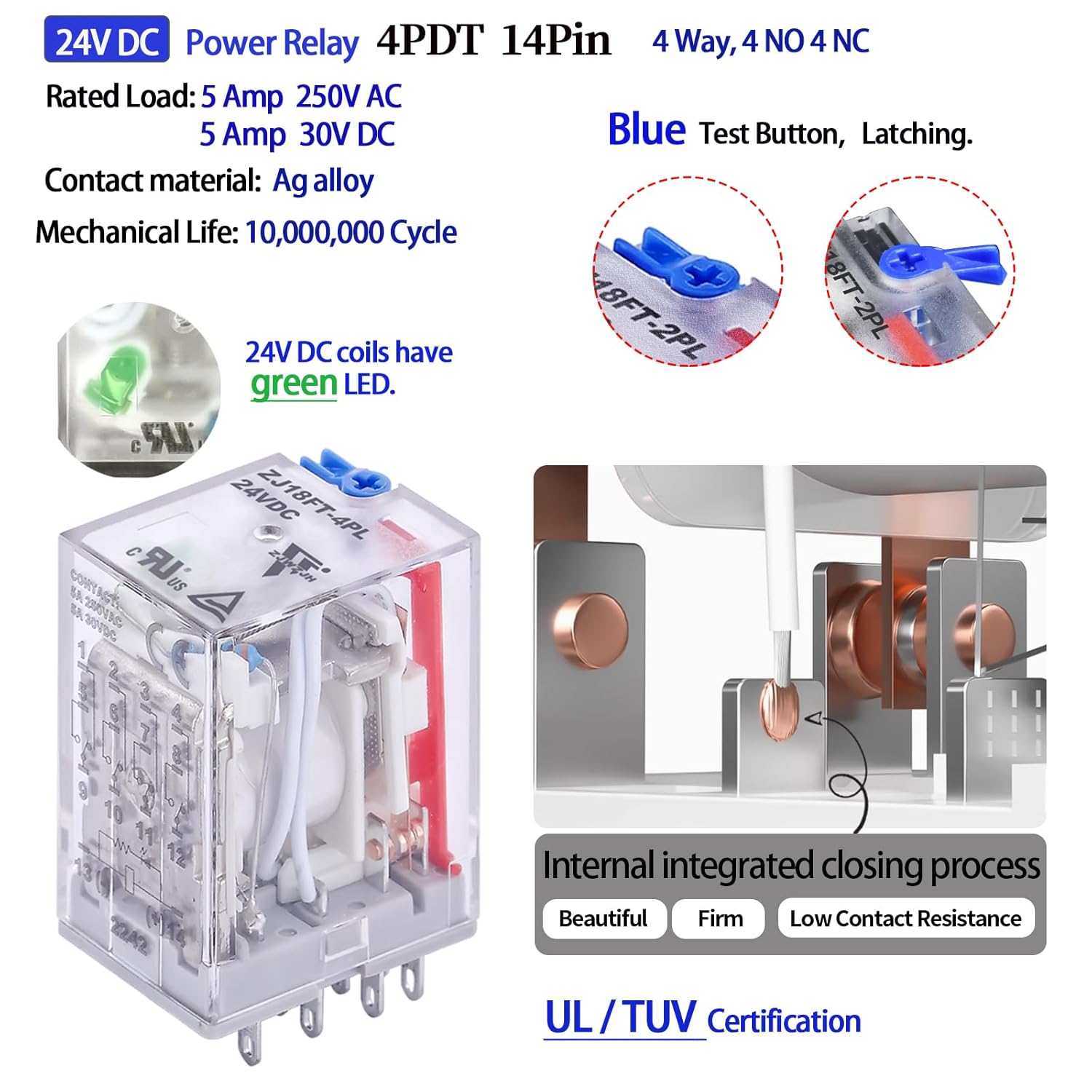

• 4-Ways. 24V DC Electromagnetic Power Relay Pass UL, CE, and TUV certification. The socket is UL/CE/CSA certified. Relays with DC coils have Green indicators LED and Blue test button (self-locking function).
• Product features: 1. There is a test button that can detect the function of the relay at any time, otherwise it needs to be powered on to check. 2. There is a LED Module installed on the socket, and the LED light on indicates that the socket is powered on, otherwise it cannot be confirmed whether the socket is powered on
• There is a "Writing Tad" that can mark each socket.4.Install a "Plastic Hook" on the socket to prevent the relay from falling. 4.Install a "Plastic Hook" on the socket to prevent the relay from falling.
• Contact: 4NO 4NC 4PDT 4-Way; Terminals: 14 Pin. Coil Voltage: 24VDC; Contact Capacity: 5Amp AC250V / 10A DC30V ;Mount Rail: 35mm DIN Rail; DIN Rail length: 80mm/15.7"(L).

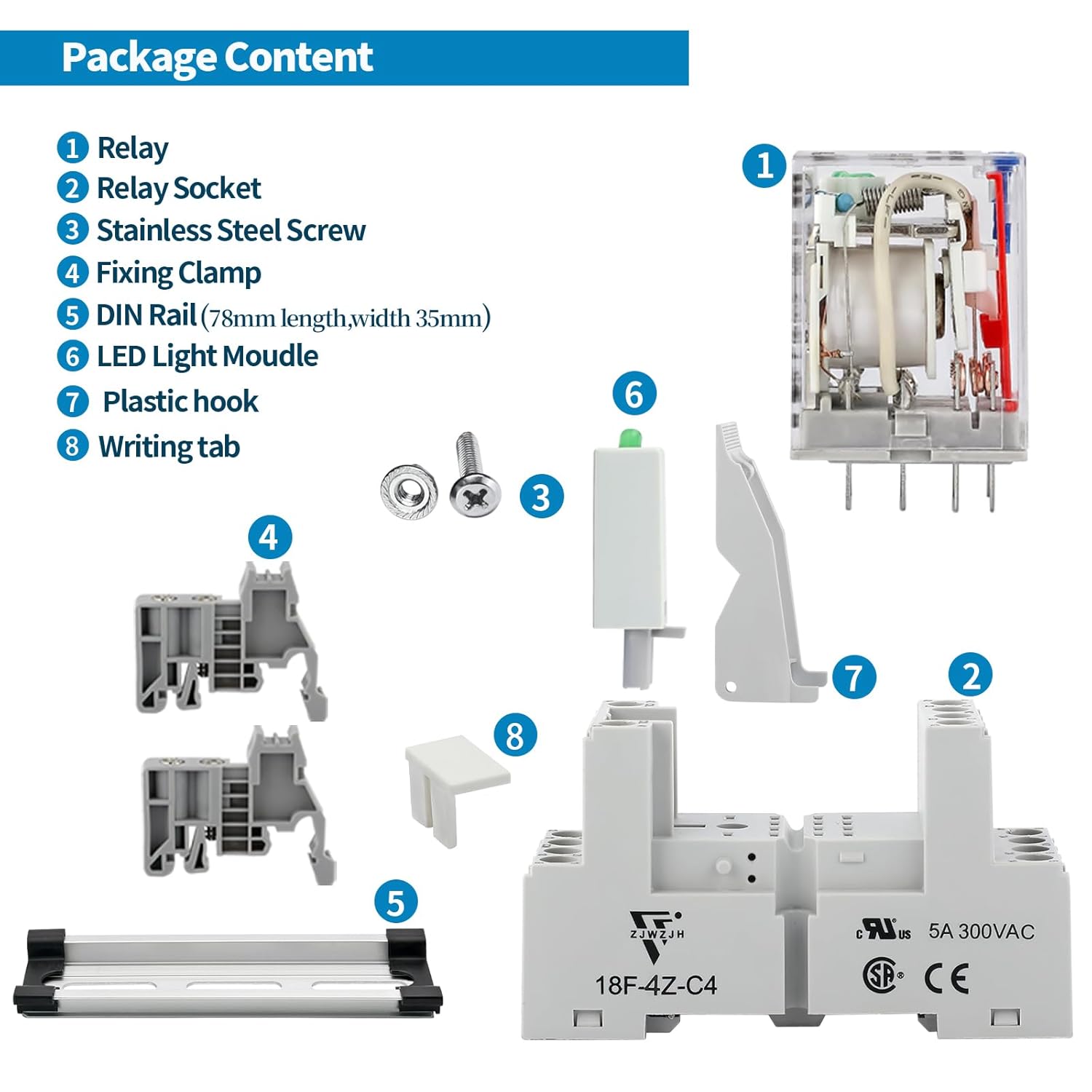

• Package Content :6 Sets Relay and Socket; 2x Rail Slotted Aluminum; 4x Fixing Clamp; 4x Stainless Steel Screw. Overall size(approx. ): 75 x 29 x 65mm; 3" x 1.1" x 2. 6"(L*W*H)
